Wendeschneidplatten

(PLAQ010-01)

L	l	e	Spezifikation	N
14	14	1.2		STANDARD	PLAQW1
14	14	1.7		STANDARD	PLAQW2
14	14	2.0		STANDARD	PLAQW3
14	14	2.0		MICRO-GRAIN	PLAQW3MG
14.5	14.5	2.0		STANDARD	PLAQW4
7.6	12	1.5		STANDARD	PLAQW5
7.4	12	1.5		STANDARD	PLAQW5-M
7.4	12	1.5		MICRO-GRAIN	PLAQW5MG
9.6	12	1.5		STANDARD	PLAQW6
9.6	12	1.5		STANDARD	PLAQW6AF
9.6	12	1.5	PENTE 3°	STANDARD	PLAQW6-M
9.6	12	1.5		MICRO-GRAIN	PLAQW6MG
12	12	1.5		STANDARD	PLAQW7
12	12	1.5		MICRO-GRAIN	PLAQW7MG
15	12	1.5		STANDARD	PLAQW8
14.6	12	1.5		STANDARD	PLAQW8AF
15	12	1.5		MICRO-GRAIN	PLAQW8MG
20	12	1.5		STANDARD	PLAQW9
19.6	12	1.5		STANDARD	PLAQW9AF
20	12	1.5		MICRO-GRAIN	PLAQW9MG
24.7	12	1.5		STANDARD	PLAQW10
24.6	12	1.5		STANDARD	PLAQW10AF
24.7	12	1.5		MICRO-GRAIN	PLAQW10MG
24.7	12	1.5		STANDARD	PLAQW11
24.6	12	1.5		STANDARD	PLAQW11AF
24.7	12	1.5		MICRO-GRAIN	PLAQW11MG
30	12	1.5		STANDARD	PLAQW12
29.6	12	1.5		STANDARD	PLAQW12AF
29.6	12	1.5		MICRO-GRAIN	PLAQW12AF-MG
29.6	12	1.5	PENTE 3°	STANDARD	PLAQW12-M
30	12	1.5		MICRO-GRAIN	PLAQW12MG
40	12	1.5		STANDARD	PLAQW13
39.5	12	1.5		STANDARD	PLAQW13AF
40	12	1.5		MICRO-GRAIN	PLAQW13MG
50	12	1.5		STANDARD	PLAQW14
49.5	12	1.5		STANDARD	PLAQW14AF
50	12	1.5		MICRO-GRAIN	PLAQW14MG
60	12	1.5		STANDARD	PLAQW15
60	12	1.5		MICRO-GRAIN	PLAQW15MG
80.8	12	2.2		STANDARD	PLAQW16
80.8	12	2.2		MICRO-GRAIN	PLAQW16MG
100.5	13	2.2		STANDARD	PLAQW17
121.2	13	2.2		STANDARD	PLAQW18
15	15	2.0		STANDARD	PLAQW20
14	14	1.95		STANDARD	PLAQW21
14	14	2.5		STANDARD	PLAQW22
14	14	3.0		STANDARD	PLAQW23
18	18	1.95		STANDARD	PLAQW24
18	18	2.95		STANDARD	PLAQW25
18	18	2.5		STANDARD	PLAQW26
22	22	2.0		STANDARD	PLAQW250

(PLAQ010-02)

L	l	e	Spezifikation	N
19.6	12	1.5	R7	STANDARD	PLAQW98
19.6	12	1.5	R6	STANDARD	PLAQW99
19.6	12	1.5	R8	STANDARD	PLAQW100
24.2	12	1.5	R10	STANDARD	PLAQW101
30	20	2.0	R12	STANDARD	PLAQW102
30	20	2.0	R15	STANDARD	PLAQW103
40	20	2.0	R20	STANDARD	PLAQW104
40	25	2.0	R25	STANDARD	PLAQW105
50	25	2.0	R30	STANDARD	PLAQW106

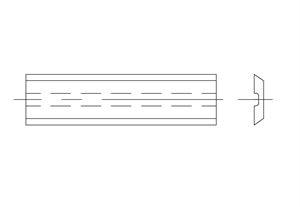

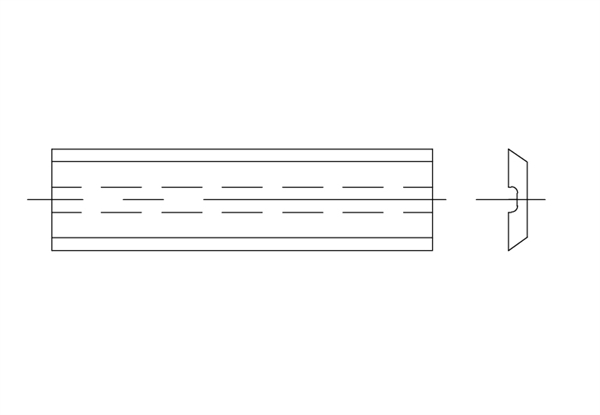

HM-Wechselplatten - LEITZ

(PLAQ020-25)

Für systeme LEITZ

L	l	e	N	Code
7.7	8	1.5	STANDARD	PLAQ0829
9.7	8	1.5	STANDARD	PLAQ0838
11.7	8	1.5	STANDARD	PLAQ0430
14.7	8	1.5	STANDARD	PLAQ0690
19.7	8	1.5	STANDARD	PLAQ0504
24.7	8	1.5	STANDARD	PLAQ0752
30	8	1.5		PLAQ0718
35	8	1.5	STANDARD	PLAQ0839
40	8	1.5	STANDARD	PLAQ0823
45	8	1.5	STANDARD	PLAQ0840
50	8	1.5	STANDARD	PLAQ0583
70	8	1.5	STANDARD	PLAQ0841
80	8	1.5	STANDARD	PLAQ0842
100	8	1.5	STANDARD	PLAQ0843

HM-Wechselplatten für Halbstabmesserkopf

(PLAQ029)

L	l	e	N	R	Messerkopf	Code
26	24	2.0	STANDARD	5	FRAI0392	PLAQ0360
26	24	2.0	STANDARD	6	FRAI0393	PLAQ0361
26	24	2.0	STANDARD	7.5	FRAI0394	PLAQ0362
30	24	2.0	STANDARD	10	FRAI0395	PLAQ0363
35	30	2.0	STANDARD	12.5	FRAI0396	PLAQ0364
40	30	2.0	STANDARD	15	FRAI0397	PLAQ0365
50	35	2.0	STANDARD	17.5	FRAI0398	PLAQ0366
50	35	2.0	STANDARD	20	FRAI0399	PLAQ0367
60	40	2.0	STANDARD	22.5	FRAI0400	PLAQ0368
60	40	2.0	STANDARD	25	FRAI0401	PLAQ0369

HM-Wechselplatten - Quadrat

(PLAQ020-07)

L	l	e	β°	N	Code
13	13	2.5	30°	STANDARD	PLAQ0667
13.4	13.4	1.5	30°	STANDARD	PLAQ0050S
13.6	13.6	2.0	45°	STANDARD	PLAQ0853
14.3	14.3	2.5	35°	STANDARD	PLAQ0456

(PLAQ010-08)

L	l	e	Spezifikation	N
11	12	1.5	R6	STANDARD	PLAQW120
11	12	1.5	R6	STANDARD	PLAQW121
11	12	1.5	R8	STANDARD	PLAQW122
11	12	1.5	R8	STANDARD	PLAQW123
14	12	1.5	R10	STANDARD	PLAQW124
14	12	1.5	R10	STANDARD	PLAQW125
15	12	1.5	R12	STANDARD	PLAQW126
15	12	1.5	R12	STANDARD	PLAQW127
30	24	2.0		STANDARD	PLAQW128
40	25	2.0		STANDARD	PLAQW130
40	25	2.0		STANDARD	PLAQW132

HM-Wechselplatten für Hohlkehlmesserkopf

(PLAQ027)

L	l	e	N	R	Messerkopf	Code
20	25	2.0	STANDARD	10	FRAI0378	PLAQ0346
20	25	2.0	STANDARD	10	FRAI0385	PLAQ0353
20	25	2.0	STANDARD	12	FRAI0379	PLAQ0347
20	25	2.0	STANDARD	12	FRAI0386	PLAQ0354
20	25	2.0	STANDARD	15	FRAI0380	PLAQ0348
20	25	2.0	STANDARD	15	FRAI0387	PLAQ0355
25	30	2.0	STANDARD	17.5	FRAI0381	PLAQ0349
25	30	2.0	STANDARD	17.5	FRAI0388	PLAQ0356
25	30	2.0	STANDARD	20	FRAI0382	PLAQ0350
25	30	2.0	STANDARD	20	FRAI0389	PLAQ0357
30	35	2.0	STANDARD	22.5	FRAI0383	PLAQ0351
30	35	2.0	STANDARD	22.5	FRAI0390	PLAQ0358
30	35	2.0	STANDARD	25	FRAI0384	PLAQ0352
30	35	2.0	STANDARD	25	FRAI0391	PLAQ0359

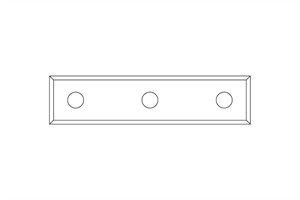

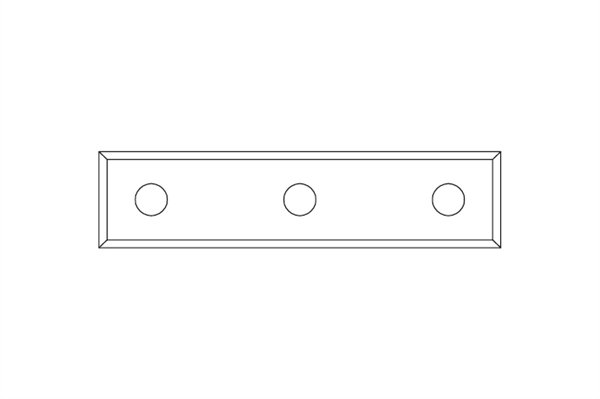

HM-Wechselplatten - LEITZ

(PLAQ020-31)

L	l	e	N	Code
50	9	1.5	STANDARD	PLAQ0873
50	10	1.7	STANDARD	PLAQ0874
50	12	1.7	STANDARD	PLAQ0477

(PLAQ010-03)

L	l	e	N
6	11.5	2.0	STANDARD	PLAQW0363
8	11.5	2.0	STANDARD	PLAQW0364
10	11.5	2.0	STANDARD	PLAQW0365
12	12	2.0	STANDARD	PLAQW0366
16	19	2.0	STANDARD	PLAQW0368
20	23	2.0	STANDARD	PLAQW03610
24	23	2.0	STANDARD	PLAQW03612
30	23	2.0	STANDARD	PLAQW03615
40	28	2.0	STANDARD	PLAQW03620

HM-Wechselplatten - Quadrat

(PLAQ020-07-2)

L	l	e	β°	N	Code
9.0	9.0	1.5	35°	STANDARD	PLAQ0820
10.5	10.5	1.5	35°	STANDARD	PLAQ0445
17	17	2.0	35°	STANDARD	PLAQ0590
19	19	2.0	35°	STANDARD	PLAQ0826

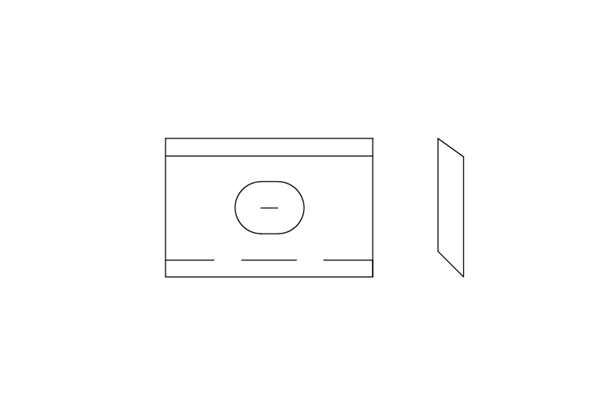

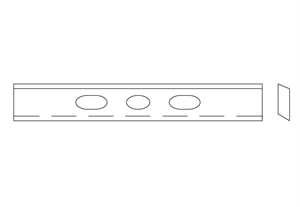

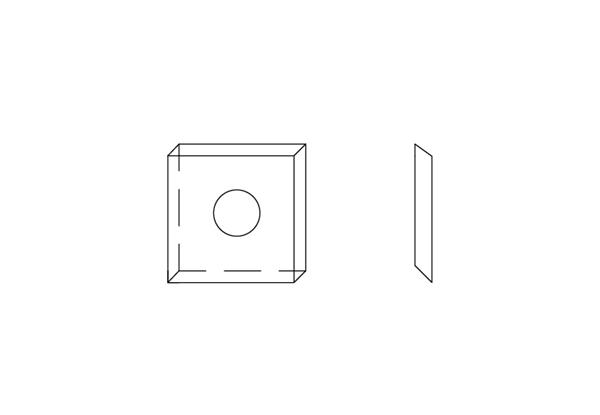

HM-Wechselplatten - OERTLI

(PLAQ020-29)

Für systeme OERTLI

L	l	e	N	Code
8.8	8	1.5	STANDARD	PLAQ0732
9.0	8	1.5	STANDARD	PLAQ0844
9.5	8	1.5	STANDARD	PLAQ0845
11	8	1.5	STANDARD	PLAQ0846
12	8	1.5	STANDARD	PLAQ0847
15	8	1.5	STANDARD	PLAQ0848
20	8	1.5	STANDARD	PLAQ0796
25	8	1.5	STANDARD	PLAQ0849
28	8	1.5	STANDARD	PLAQ0850

HM-Wechselplatten für Messserkopf für konkave Halbrundungen

(PLAQ028)

L	l	e	N	R	Messerkopf	Code
15	20	2.0	STANDARD	7.5	FRAI0370	PLAQ0324
20	20	2.0	STANDARD	10	FRAI0371	PLAQ0325
25	24	2.0	STANDARD	12.5	FRAI0372	PLAQ0326
30	25	2.0	STANDARD	15	FRAI0373	PLAQ0327
35	25	2.0	STANDARD	17.5	FRAI0374	PLAQ0328
40	25	2.0	STANDARD	20	FRAI0375	PLAQ0329
45	25	2.0	STANDARD	22.5	FRAI0370	PLAQ0330
50	30	2.0	STANDARD	25	FRAI0370	PLAQ0331

L	l	e	N
15	19	2.0	STANDARD	PLAQW0354
15	19	2.0	STANDARD	PLAQW0353
25	23	2.0	STANDARD	PLAQW0355
25	23	2.0	STANDARD	PLAQW0356
25	24	2.0	STANDARD	PLAQW0358
30	24	2.0	STANDARD	PLAQW03510
40	24	2.0	STANDARD	PLAQW03512
40	29	2.0	STANDARD	PLAQW03515
50	34	2.0	STANDARD	PLAQW03520

HM-Wechselplatten - Quadrat

(PLAQ020-07-1)

Für P.O Hundegger

L	l	e	N	Code
21	21	5.5	STANDARD	PLAQ0321

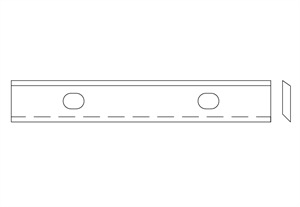

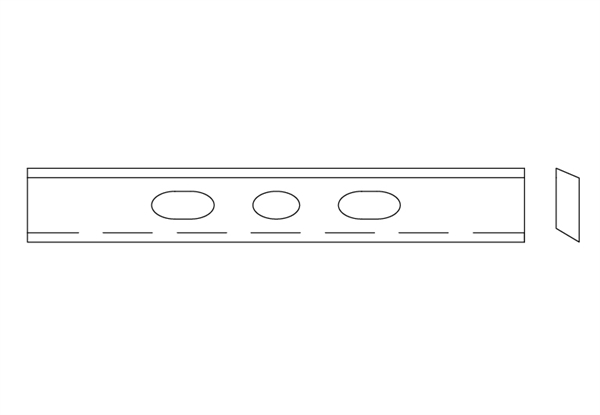

HM-Wechselplatten - OERTLI

(PLAQ020-27)

Für systeme OERTLI

L	l	e	N	Code
40	8	1.5	STANDARD	PLAQ0628
50	8	1.5	STANDARD	PLAQ0851
60	8	1.5	STANDARD	PLAQ0614
80	8	1.5	STANDARD	PLAQ0852

HM-Wechselplatten für Viertelstabmesserkopf

(PLAQ026)

L	l	e	N	R	Messerkopf	Code
15	25	2.0	STANDARD	8	FRAI0318	PLAQ0314
20	25	2.0	STANDARD	10	FRAI0363	PLAQ0339
20	25	2.0	STANDARD	10	FRAI0456	PLAQ0332
25	30	2.0	STANDARD	12	FRAI0364	PLAQ0340
25	30	2.0	STANDARD	12	FRAI0457	PLAQ0333
25	30	2.0	STANDARD	15	FRAI0365	PLAQ0341
25	30	2.0	STANDARD	15	FRAI0458	PLAQ0334
30	25	2.0	STANDARD	12	FRAI0319	PLAQ0316
30	35	2.0	STANDARD	17.5	FRAI0366	PLAQ0342
30	35	2.0	STANDARD	17.5	FRAI0459	PLAQ0335
30	35	2.0	STANDARD	20	FRAI0367	PLAQ0343
30	35	2.0	STANDARD	20	FRAI0460	PLAQ0336
35	40	2.0	STANDARD	22.5	FRAI0368	PLAQ0344
35	40	2.0	STANDARD	22.5	FRAI0461	PLAQ0337
35	40	2.0	STANDARD	25	FRAI0369	PLAQ0345
35	40	2.0	STANDARD	25	FRAI0462	PLAQ0338

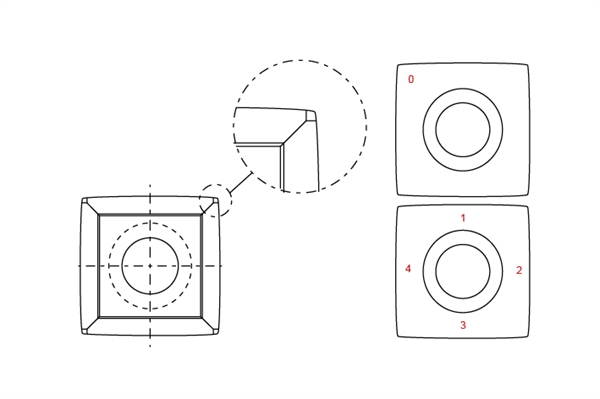

HM-Wechselplatten gerundet

(PLAQ020-08)

L	l	e	β°	N	R	Code
15	15	2.5	30°	STANDARD	0	PLAQ0565
15	15	2.5	30°	MICRO-GRAIN	50	PLAQ0570
15	15	2.5	30°	STANDARD	115	PLAQ0568
15	15	2.5	30°	MICRO-GRAIN	150	PLAQ0569
15	15	2.5	37°	STANDARD	0	PLAQ0749

HM-Wechselplatten - OERTLI

(PLAQ020-26)

Für systeme OERTLI

L	l	e	N	Code
32	8	1.5	STANDARD	PLAQ0738

(PLAQ010-07)

L	l	e	Spezifikation	N
19.8	22	2.0	R2	STANDARD	PLAQW107
19.8	22	2.0	R2	STANDARD	PLAQW108
19.8	22	2.0	R3	STANDARD	PLAQW109
19.8	22	2.0	R3	STANDARD	PLAQW110
19.8	22	2.0	R4	STANDARD	PLAQW111
19.8	22	2.0	R4	STANDARD	PLAQW112
19.8	22	2.0	R5	STANDARD	PLAQW113
19.8	22	2.0	R5	STANDARD	PLAQW114
19.8	22	2.0	R6	STANDARD	PLAQW115
19.8	22	2.0	R6	STANDARD	PLAQW116
19.8	22	2.0	R8	STANDARD	PLAQW117
19.8	22	2.0	R8	STANDARD	PLAQW118

HM-Wechselplatten für Multi-Viertelstabmesserkopf

(PLAQ026-1)

L	l	e	N	R	Messerkopf	Code
20	24	2.0	STANDARD	3	FRAI14720201	PLAQ20242R3
20	24	2.0	STANDARD	4	FRAI14720201	PLAQ20242R4
20	24	2.0	STANDARD	5	FRAI14720201	PLAQ20242R5
20	24	2.0	STANDARD	6	FRAI14720201	PLAQ20242R6
20	24	2.0	STANDARD	8	FRAI14720201	PLAQ20242R8
20	24	2.0	STANDARD	10	FRAI14720201	PLAQ20242R10
30	34	2.0	STANDARD	12	FRAI16730201	PLAQ30342R12
30	34	2.0	STANDARD	15	FRAI16730201	PLAQ30342R15
30	34	2.0	STANDARD	18	FRAI16730201	PLAQ30342R18
30	34	2.0	STANDARD	20	FRAI16730201	PLAQ30342R20

HM-Wechselplatten - OERTLI

(PLAQ020-28)

Für systeme OERTLI

L	l	e	N	Code
12	12	1.5	STANDARD	PLAQ0699

(PLAQ010-18)

L	l	e	Spezifikation	N
46.5	12	1.5		STANDARD	PLAQW90
46.5	12	1.5		STANDARD	PLAQW91
23.5	12	1.5	R6	STANDARD	PLAQW92
23.5	12	1.5	R7	STANDARD	PLAQW93
23.5	12	1.5	R5	STANDARD	PLAQW94
18	12	1.5		STANDARD	PLAQW95
23.5	12	1.5	R9	STANDARD	PLAQW96
23.5	12	1.5	PENTE 3°	STANDARD	PLAQW97

HM-Wechselplatten für Hobelmesserkopf, Alukörper und Wendeschneidplatten

(PLAQ030)

L	l	e	β°	N	Code
20	12	1.5	35°	MICRO-GRAIN	PLAQ0419
24.7	12	1.5	40°	STANDARD	PLAQ0438
30	12	1.5	35°	STANDARD	PLAQ0420

HM-Wechselplatten für Multi-Abplattmesserkopf

(PLAQ032)

L	l	e	N	Messerkopf	Code
20	12	1.5	STANDARD	FRAI0304	5	PLAQ0409
20	12	1.5	STANDARD	FRAI0304	4	PLAQ0410
60	12	1.5	STANDARD	FRAI0304	1	PLAQ0413
60	12	1.5	STANDARD	FRAI0304	2	PLAQ0412
60	12	1.5	STANDARD	FRAI0304	3	PLAQ0411
60	12	1.5	STANDARD	FRAI0455	1	PLAQ0418
60	12	1.5	STANDARD	FRAI0455	2	PLAQ0417
60	12	1.5	STANDARD	FRAI0455	3	PLAQ0416
20	12	1.5	STANDARD	FRAI0455	4	PLAQ0415
20	12	1.5	STANDARD	FRAI0455	5	PLAQ0414

L	l	e	Spezifikation	N
46.5	12	1.5		STANDARD	PLAQW80
46.5	12	1.5		STANDARD	PLAQW81
23.5	12	1.5	R6	STANDARD	PLAQW82
23.5	12	1.5	R7	STANDARD	PLAQW83
23.8	12	1.5	R5	STANDARD	PLAQW84
18	12	1.5		STANDARD	PLAQW85
23.4	12	1.5	R9	STANDARD	PLAQW86
23.7	12	1.5	PENTE 3°	STANDARD	PLAQW87

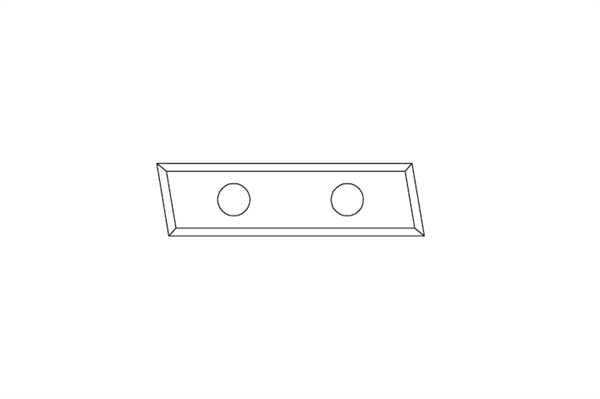

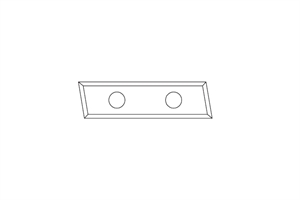

HM-Wechselplatten - ARUNDA

(PLAQ020-30)

L	l	e	N	Code
33	9.0	1.5	STANDARD	PLAQ0547A

HM-Wechselplatten für Abplattmesserkopf Karnies

(PLAQ034)

L	l	e	N	R	Messerkopf	Code
23.5	12	1.5	STANDARD	4	FRAI0489	3	PLAQ0483
23.5	12	1.5	STANDARD	5	FRAI0489	4	PLAQ0480
23.5	12	1.5	STANDARD	6	FRAI0489	1	PLAQ0484
23.5	12	1.5	STANDARD	7	FRAI0489	2	PLAQ0485
40	12	1.5	STANDARD	-	FRAI0489	5	PLAQ0479

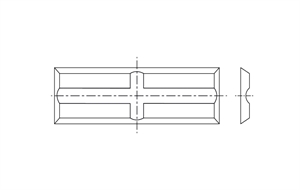

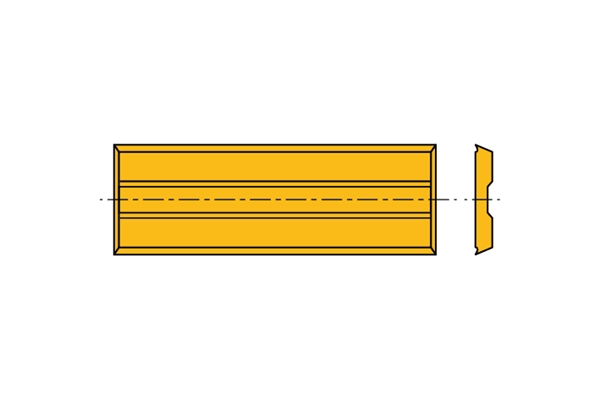

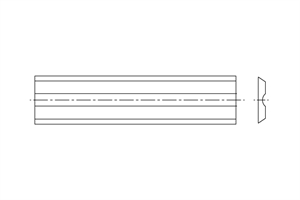

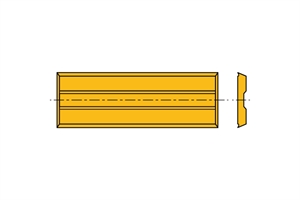

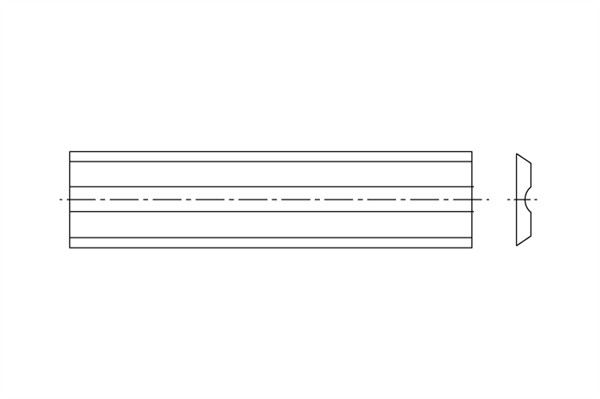

HM-Wechselplatten 2 Schneiden für Elektrohobel

(PLAQ020-04)

L	l	e	N	Code
75	5.5	1.1	STANDARD	PLAQ0058
80.5	5.5	1.1	STANDARD	PLAQ0059
80.5	5.9	1.2	STANDARD	PLAQ0237
82	5.5	1.1	STANDARD	PLAQ0060
82	5.5	1.1	STANDARD	PLAQ0060X2
92	5.5	1.1	STANDARD	PLAQ0239
102	5.5	1.1	STANDARD	PLAQ0240

HM-Wechselplatten für Gehrungsverleimmesserkopf

(PLAQ022)

L	l	e	N	Messerkopf	Code
50	20	2.0	STANDARD	FRAI0303	PLAQ0404

L	l	e	Spezifikation	N
48.7	12	1.5		STANDARD	PLAQW67
48.7	12	1.5		STANDARD	PLAQW68
14.6	12	1.5		STANDARD	PLAQW69
46.5	12	1.5	DESSUS	STANDARD	PLAQW194
46.5	12	1.5	DESSOUS	STANDARD	PLAQW195
41.7	12	1.5		STANDARD	PLAQW222
41.7	12	1.5		STANDARD	PLAQW223
14.5	12	1.5		STANDARD	PLAQW224
14.5	12	1.5		STANDARD	PLAQW225
14.5	12	1.5		STANDARD	PLAQW226
14.5	12	1.5		STANDARD	PLAQW227
14.5	12	1.5	DOUCINE 7x4.5	STANDARD	PLAQW228
14.5	12	1.5	DOUCINE 7x4.5	STANDARD	PLAQW229

HM-Wechselplatten "Diamant beschichtet"

$HM-Wechselplatten \$

(PLAQ020-32)

L	l	e	N	Code
12	12	1.5	DIAMANT	PLAQ0048SC
14	14	2.0	DIAMANT	PLAQ0068SC
20	12	1.5	DIAMANT	PLAQ0053SC
29.5	12	1.5	DIAMANT	PLAQ0244SC
30	12	1.5	DIAMANT	PLAQ0054SC
40	12	1.5	DIAMANT	PLAQ0055SC
49.5	12	1.5	DIAMANT	PLAQ0246SC
50	12	1.5	DIAMANT	PLAQ0056SC

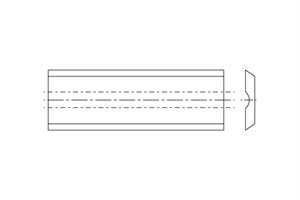

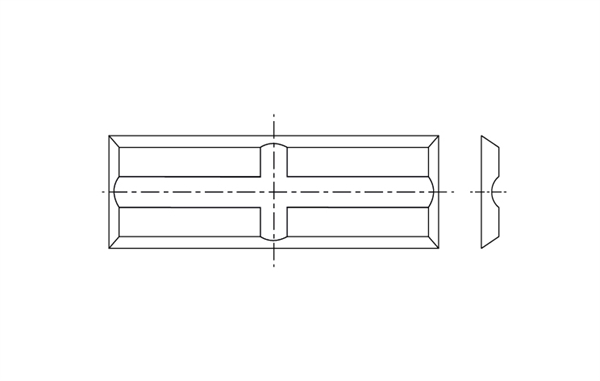

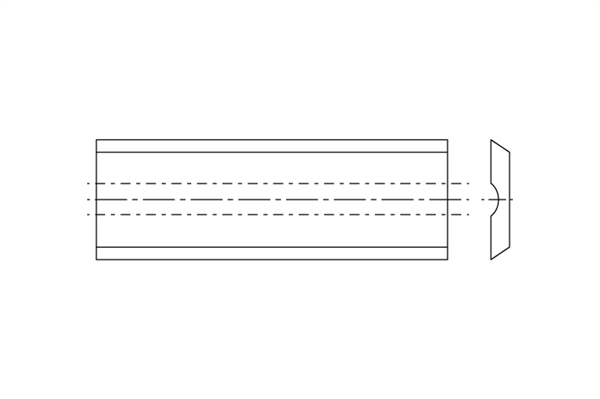

HM-Wechselplatten 2 Schneiden, Nut groβe Seite

(PLAQ020-10)

L	l	e	N	Code
12	5.5	1.1	STANDARD	PLAQ0802
20	5.5	1.1	STANDARD	PLAQ0803
30	5.5	1.1	STANDARD	PLAQ0617
40	5.5	1.1	STANDARD	PLAQ0804
50	5.5	1.1	STANDARD	PLAQ0805

(PLAQ010-06)

L	l	e	Spezifikation	N
40	12	1.5	CHANFREIN 20°	STANDARD	PLAQW28
18	12	1.5		STANDARD	PLAQW29
30	12	1.5	CHANFREIN 15°	STANDARD	PLAQW31
21	12	1.5	CHANFREIN 15°	STANDARD	PLAQW34
21	12	1.5	CHANFREIN 15°	STANDARD	PLAQW35
20	12	1.5	CHANFREIN 20°	STANDARD	PLAQW40
30	12	1.5	CHANFREIN 15°	STANDARD	PLAQW131

HM-Wechselplatten genutet

(PLAQ020-23)

L	l	e	N	Code
34	16	4.0	STANDARD	PLAQ0405
34	16	5.0	STANDARD	PLAQ0576

HM-Wechselplatten für Schwenkmesserkopf h50mm

(PLAQ021)

L	l	e	N	Messerkopf	Code
50	14.5	1.5	STANDARD	FRAI0271 - FRAI0674 - FRAI0675	6	PLAQ0309
50	15.2	1.5	STANDARD	FRAI0271 - FRAI0674 - FRAI0675	8	PLAQ0311
50	16	1.5	STANDARD	FRAI0271 - FRAI0674 - FRAI0675	5	PLAQ0307
50	16.5	1.5	STANDARD	FRAI0271 - FRAI0674 - FRAI0675	1	PLAQ0308
50	16.5	1.5	STANDARD	FRAI0271 - FRAI0674 - FRAI0675	4	PLAQ0306
50	17	1.5	STANDARD	FRAI0271 - FRAI0674 - FRAI0675	7	PLAQ0310
50	17	1.5	STANDARD	FRAI0271 - FRAI0674 - FRAI0675	3	PLAQ0305

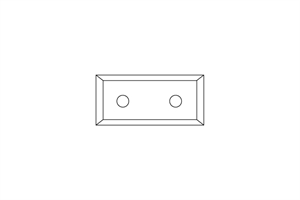

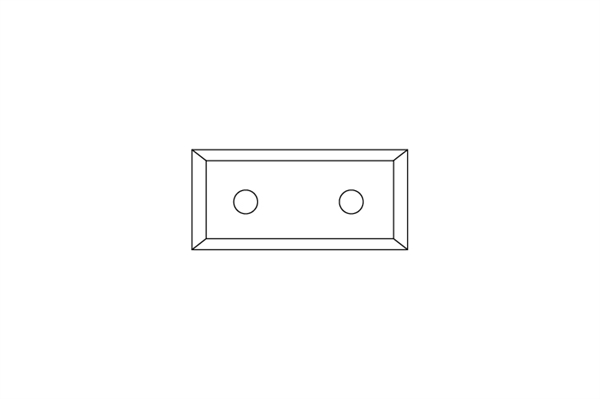

HM-Wechselplatten 4 Schneiden, Nut kleine Seite

(PLAQ020-11)

L	l	e	N	Code
12	5.5	1.1	STANDARD	PLAQ0806
20	5.5	1.1	STANDARD	PLAQ0807
25	5.5	1.1	STANDARD	PLAQ0808
30	5.5	1.1	STANDARD	PLAQ0809
40	5.5	1.1	STANDARD	PLAQ0810
50	5.5	1.1	STANDARD	PLAQ0811

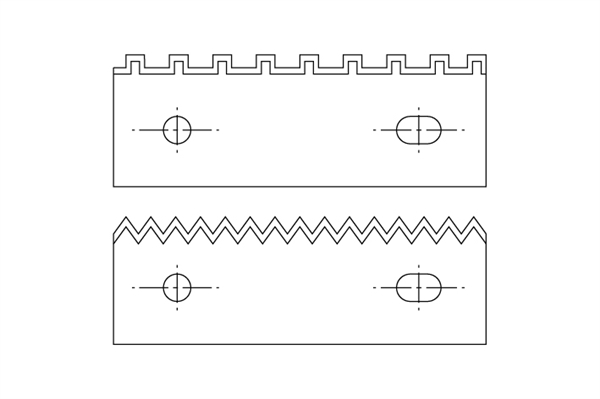

(PLAQ010-04)

L	l	e	Spezifikation	N
50	15	1.5		STANDARD	PLAQW30
50	15.5	2.0		STANDARD	PLAQW32
49.5	12	1.5		STANDARD	PLAQW33
50	29.5	2.0	PAS 8	STANDARD	PLAQW141
30	24.5	2.0	BOUVETAGE W 10/28	STANDARD	PLAQW213
50	30	2.0	BOUVETAGE W 15/48	STANDARD	PLAQW214
15	20	2.0	BOUVETAGE W	STANDARD	PLAQW240
80	13	2.0		STANDARD	PLAQW300

HM-Wechselplatten genutet

(PLAQ020-22)

L	l	e	N	Code
24.5	13	4.0	STANDARD	PLAQ0470
24.5	13	5.0	STANDARD	PLAQ0518

HM-Wechselplatten - FOZ 1 Schneide - TIN beschichtet

(PLAQ-FOZ02)

Bei Artikelnummern, die auf A enden, hat die Wechselplatte Fasen.

Für systeme FOZ/KWO

L	l	e	ØFräser	Code
20	5.5	1.1	d : 8 à 12mm	FOZ205511S
30	10	1.5	d : 14 à 24mm	FOZ301015
50	10	1.5	d : 14 à 24mm	FOZ501015S

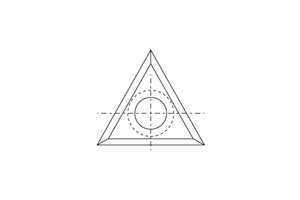

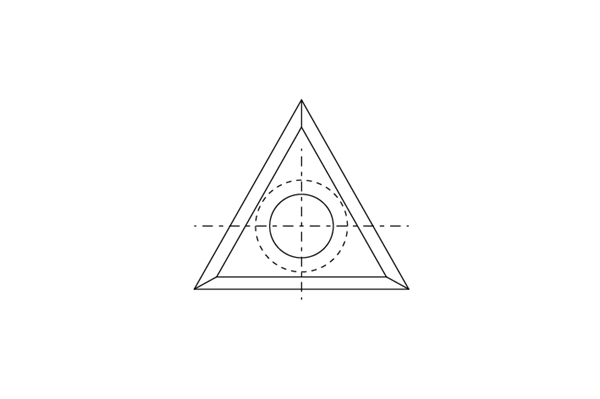

HM-Wechselplatten - Dreieck

(PLAQ020-05)

L	l	e	β°	N	Code
22.9	19.8	2.5	30°	STANDARD	PLAQ0463

(PLAQ010-05)

L	l	e	Spezifikation	N	Code
24.5	12	1.5		STANDARD		PLAQW145
24.5	12	1.5		STANDARD		PLAQW146

(PLAQ-FOZ01)

L	l	e	ØFräser	Code
29.5	7.5	1.5	d : 15mm	FOZ2957515
29.5	8	1.5	d : 16mm	FOZ295815
29.5	9	1.5	d : 18mm	FOZ295915
29.5	10	1.5	d : 20mm	FOZ2951015
29.5	11	1.5	d : 22mm	FOZ2951115
29.5	12	1.5	d : 24 à 26mm	FOZ2951215

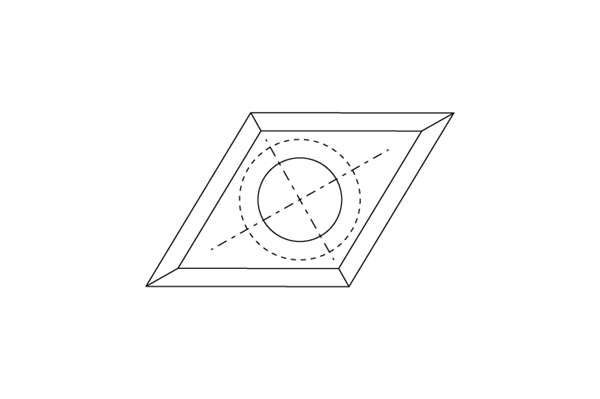

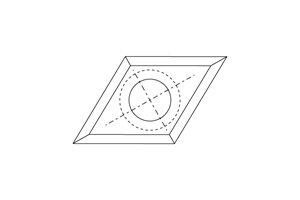

HM-Wechselplatten - Rhombisch

(PLAQ020-06)

L	l	e	β°	N	Code
14	28	2.0	30°	STANDARD	PLAQ0696
16	16	3.0	32°	STANDARD	PLAQ0695

(PLAQ010-22)

L	l	e	Spezifikation	N
28	12	3.0	DESSOUS	STANDARD	PLAQW50DOS
28	12	3.0	DESSUS	STANDARD	PLAQW50DUS
28	12	4.0		STANDARD	PLAQW51
28	12	6.0		STANDARD	PLAQW52
28	12	5.0		STANDARD	PLAQW59
34	16	3.0		STANDARD	PLAQW293DOS
34	16	3.0		STANDARD	PLAQW293DUS
34	16	4.0		STANDARD	PLAQW294
34	16	5.0		STANDARD	PLAQW295
34	16	6.0		STANDARD	PLAQW296

(PLAQ010-21)

L	l	e	Spezifikation	N
20	20	2.0	DOUCINE 10x6	STANDARD	PLAQW70
25	20	2.0	AVT 15	STANDARD	PLAQW72
30	20	2.0	AVT 20	STANDARD	PLAQW74
25	20	2.0	AVT 15	STANDARD	PLAQW76
30	20	2.0	AVT 20	STANDARD	PLAQW78
38	30	2.0	COFFRET ERIC	STANDARD	PLAQW209
20	25	2.0	DOUCINE 15x7	STANDARD	PLAQW211

(PLAQ010-09)

L	l	e	Spezifikation	N
20	18	1.5	DOUCINE 10x6	STANDARD	PLAQW71
25	20	2.0	AVT 15	STANDARD	PLAQW73
32	20	2.0	AVT 20	STANDARD	PLAQW75
25	20	2.0	AVT 15	STANDARD	PLAQW77
32	20	2.0	AVT 20	STANDARD	PLAQW79

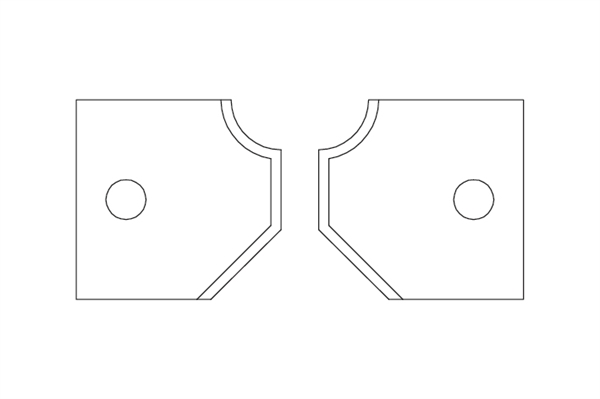

(PLAQ010-24)

L	l	e	Spezifikation	N
22	16	5.0	CHANFREIN 45°	STANDARD	PLAQW57
22	16	5.0	RAYON 2	MICRO-GRAIN	PLAQW552
22	16	5.0	RAYON3	MICRO-GRAIN	PLAQW55
22	16	6.0	RAYON 1.5	MICRO-GRAIN	PLAQW56

(PLAQ010-11)

L	l	e	Spezifikation	N
12	12	1.5		STANDARD	PLAQW27
19.8	15	1.5	GORGE DE 13	STANDARD	PLAQW38
19.8	15	1.5	GORGE DE 14	STANDARD	PLAQW39
23.7	12	1.5		STANDARD	PLAQW41
19.8	12	1.5	DOUCINE 10x8	STANDARD	PLAQW42
19.8	12	1.5	DOUCINE 10x8	STANDARD	PLAQW43
18.8	17.8	1.5	DOUCINE 10x8	STANDARD	PLAQW44
19.2	12	1.5		STANDARD	PLAQW45
19.8	13.2	1.5		STANDARD	PLAQW46
50	20	2.0	JET D EAU	STANDARD	PLAQW47
15	12	1.5		STANDARD	PLAQW54
19.8	12	1.5	DOUCINE 10x6	STANDARD	PLAQW63
19.8	12	1.5	DOUCINE 10x6	STANDARD	PLAQW64
19.8	12	1.5	DOUCINE 10x6	STANDARD	PLAQW66
20	12	1.5	CHANFREIN 36° AFNOR	STANDARD	PLAQW140
14.5	12	1.5		STANDARD	PLAQW142
19.6	12	1.5	DOUCINE 10x8	STANDARD	PLAQW143
19.6	17.8	1.5	DOUCINE 10x8	STANDARD	PLAQW144
19.8	12	1.5		STANDARD	PLAQW147
23.5	20.8	2.0		STANDARD	PLAQW148
24.5	12	1.5	PENTE 2°	STANDARD	PLAQW158
14.8	12	1.5	PENTE 2°	STANDARD	PLAQW159
19.5	25	2.0		STANDARD	PLAQW160
24.6	23	2.0		STANDARD	PLAQW163
24.6	23	3.0		STANDARD	PLAQW163-M
20	18	1.5	DOUCINE 10x6	STANDARD	PLAQW171
20	18	1.5	DOUCINE 10x6	STANDARD	PLAQW172
30	19.8	2.0		STANDARD	PLAQW175
15	19.5	2.0		STANDARD	PLAQW176
20	12	1.5	CHANFREIN 36° AFNOR	STANDARD	PLAQW180
20	18	1.5	CHANFREIN 36° AFNOR	STANDARD	PLAQW181
20	18	1.5	CHANFREIN 36° AFNOR	STANDARD	PLAQW182
19.5	18	1.5	1/4 DE ROND 8	STANDARD	PLAQW183
19.5	18	1.5	1/4 DE ROND 8	STANDARD	PLAQW184
16	23	2.0		STANDARD	PLAQW185
20	23	2.0		STANDARD	PLAQW187
29.5	12	1.5	CHANFREIN 45°	STANDARD	PLAQW190
20	20	2.0	1/4 DE ROND 15	STANDARD	PLAQW191
20	20	2.0		STANDARD	PLAQW192
20	19	2.0		STANDARD	PLAQW193
20	17	2.0		STANDARD	PLAQW196
25	28	2.0		STANDARD	PLAQW198
6.65	12	1.5		STANDARD	PLAQW199
9.6	12	1.5	CHANFREIN 15°	STANDARD	PLAQW200
9.6	12	1.5	CHANFREIN 15°	STANDARD	PLAQW201
20	18	1.5	1/4 DE ROND 7	STANDARD	PLAQW202
20	18	1.5	1/4 DE ROND 7	STANDARD	PLAQW203
12	18	1.5	CHANFREIN 25° Afnor	STANDARD	PLAQW204
20	18	1.5	CHANFREIN 25° Afnor	STANDARD	PLAQW205
20	18	1.5	CHANFREIN 25° Afnor	STANDARD	PLAQW206
12	18	1.5	CHANFREIN 25° Afnor	STANDARD	PLAQW207
20	60	4.0	CHANFREIN 15°	STANDARD	PLAQW230
29	12	6.0	JOINT PHONIQUE	STANDARD	PLAQW231
29	12	6.0	JOINT PHONIQUE	STANDARD	PLAQW232
12	12	1.5	CHANFREIN 15°	STANDARD	PLAQW233
7.6	12	1.5	CHANFREIN 15°	STANDARD	PLAQW234
12	12	1.5	CHANFREIN 15°	STANDARD	PLAQW235
7.5	12	1.5	CHANFREIN 15°	STANDARD	PLAQW238
14.6	19.4	2.0		STANDARD	PLAQW242
20	22	2.0		STANDARD	PLAQW244
30	28.8	2.0		STANDARD	PLAQW246
30	15.5	2.0		STANDARD	PLAQW247
13	30	2.0		STANDARD	PLAQW301
15	19.5	2.0		STANDARD	PLAQW326
30	31.5	2.0		STANDARD	PLAQW327
20	22.5	2.0		STANDARD	PLAQW328
7.6	12	1.5		STANDARD	PLAQW329
17.6	12	1.5		STANDARD	PLAQW330
20	23.2	2.0		STANDARD	PLAQW332
20	24	2.0		STANDARD	PLAQW334
27.6	12	1.5		STANDARD	PLAQW335
20	19.4	2.0		STANDARD	PLAQW336
20.6	24	2.0		STANDARD	PLAQW337
17	19	2.0		STANDARD	PLAQW338
22	20	2.0		STANDARD	PLAQW342
14.6	24	2.0		STANDARD	PLAQW470
21.5	12	1.5		STANDARD	PLAQW471
20	24.2	2.0		STANDARD	PLAQW472
20	23.2	2.0		STANDARD	PLAQW473
15	19	2.0		STANDARD	PLAQW474
17.4	23.2	2.0		STANDARD	PLAQW475
40	25	2.0		STANDARD	PLAQW476
20	22.7	2.0		STANDARD	PLAQW477
20	22.6	2.0		STANDARD	PLAQW478
20	19	2.0		STANDARD	PLAQW479
30	28	2.0		STANDARD	PLAQW480
40	28.8	2.0		STANDARD	PLAQW481
15	19	2.0		STANDARD	PLAQW482
15	19	2.0		STANDARD	PLAQW483
30	18	2.0		STANDARD	PLAQW484
20	19.6	2.0		STANDARD	PLAQW485
25	28	2.0		STANDARD	PLAQW486

(PLAQ010-10)

L	l	e	Spezifikation	N
29	12		GOUTTE D EAU	STANDARD	PLAQW177
29	12		GOUTTE D EAU	STANDARD	PLAQW178
30	12	11	GOUTTE D EAU R11.25	STANDARD	PLAQW241
30	12	10	GOUTTE D EAU R10	STANDARD	PLAQW243

(PLAQ010-12)

L	l	e	Spezifikation	N	Code
60	34.5	2.0		STANDARD		PLAQW49
60	34.5	2.0		STANDARD		PLAQW149

(PLAQ010-17)

L	l	e	Spezifikation	N	Code
50	30	2.0		STANDARD		PLAQW88

(PLAQ010-13)

L	l	e	N
20	20	2.0	STANDARD	PLAQW208
20	20	2.0	STANDARD	PLAQW210
22	20	2.0	STANDARD	PLAQW212

(PLAQ010-14)

L	l	e	N
50	19	2.0	STANDARD	PLAQW36
50	19	2.0	STANDARD	PLAQW37
50	30	2.0	STANDARD	PLAQW119

(PLAQ010-15)

L	l	e	Spezifikation	N
30	25	2.0	LOUIS XV R25	STANDARD	PLAQW215
40	25	2.0	LOUIS XV R32	STANDARD	PLAQW216
40	20	2.0	POUR MONTANT	STANDARD	PLAQW217
24	12	1.5	STYLE CORNICHE	STANDARD	PLAQW218
50	13	2.2	STYLE CORNICHE	STANDARD	PLAQW219
20.5	20	2.0	STYLE CORNICHE	STANDARD	PLAQW220
55	13	2.2	STYLE CORNICHE	STANDARD	PLAQW221

(PLAQ010-16)

L	l	e	Spezifikation	N
28.5	26	2.0	DOUCINE 10x6	STANDARD	PLAQW251
28.5	26	2.0	DOUCINE 10x6	STANDARD	PLAQW252
28.5	26	2.0	AVT 15	STANDARD	PLAQW253
28.5	26	2.0	AVT 15	STANDARD	PLAQW254
28.5	26	2.0	AVT 20	STANDARD	PLAQW255
28.5	26	2.0	AVT 20	STANDARD	PLAQW256
28.5	26	2.0	1/4 DE ROND 8	STANDARD	PLAQW257
28.5	26	2.0	1/4 DE ROND 8	STANDARD	PLAQW258
28.5	26	2.0	CHANFREIN 36° Afnor	STANDARD	PLAQW259
28.5	26	2.0	CHANFREIN 36° Afnor	STANDARD	PLAQW260
28.5	26	2.0	DOUCINE 10x8	STANDARD	PLAQW261
28.5	26	2.0	DOUCINE 10x8	STANDARD	PLAQW262
28.5	26	2.0	CHANFREIN 25°	STANDARD	PLAQW263
28.5	26	2.0	CHANFREIN 25°	STANDARD	PLAQW264

(PLAQ012-01)

L	l	e	N
10	14	2.5	STANDARD	PLAQW802020
8	14	2.5	STANDARD	PLAQW802021
16.3	19.47	2.5	STANDARD	PLAQW802022
8	20	2.5	STANDARD	PLAQW802023
40	22	2.5	STANDARD	PLAQW802024
21	20	2.5	STANDARD	PLAQW802025
24	24	2.5	STANDARD	PLAQW802026
16	25	2.5	STANDARD	PLAQW802027
22	28	2.5	STANDARD	PLAQW802028
31	25	2.5	STANDARD	PLAQW802029
54	25	2.5	STANDARD	PLAQW802031
18	21	2.5	STANDARD	PLAQW802032
22	21	2.5	STANDARD	PLAQW802033
22	24	2.5	STANDARD	PLAQW802034
13	25	2.5	STANDARD	PLAQW802035
55	24	2.5	STANDARD	PLAQW802036
20	29	2.5	STANDARD	PLAQW802037
15	27	2.5	STANDARD	PLAQW802038
55	25	2.5	STANDARD	PLAQW802039
26	25	2.5	STANDARD	PLAQW802040
26	25	2.5	STANDARD	PLAQW802041
25	23	2.5	STANDARD	PLAQW802042
22	18	2.5	STANDARD	PLAQW802043
20	25	2.5	STANDARD	PLAQW802044
54	25	2.5	STANDARD	PLAQW802045
18	20	2.5	STANDARD	PLAQW802046
16	20	2.5	STANDARD	PLAQW802062
22	20	2.5	STANDARD	PLAQW802063
15	27	2.5	STANDARD	PLAQW802064
52	22	2.5	STANDARD	PLAQW802065
21	27	2.5	STANDARD	PLAQW802066
27	23	2.5	STANDARD	PLAQW802067
23	29	2.5	STANDARD	PLAQW802068
23	25	2.5	STANDARD	PLAQW802069
23	20	2.5	STANDARD	PLAQW802070
20	22	2.5	STANDARD	PLAQW802090
50	15	2.5	STANDARD	PLAQW802091
30	19	2.5	STANDARD	PLAQW802092
32	23	2.5	STANDARD	PLAQW802093
85	29	2.5	STANDARD	PLAQW802140
23	28	2.5	STANDARD	PLAQW802153
25	26	2.5	STANDARD	PLAQW802154
25	34	2.5	STANDARD	PLAQW802155

(PLAQ011-01)

L	l	e	Spezifikation	N	Code
40	23	2.0		STANDARD		PLAQW356

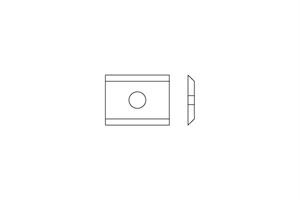

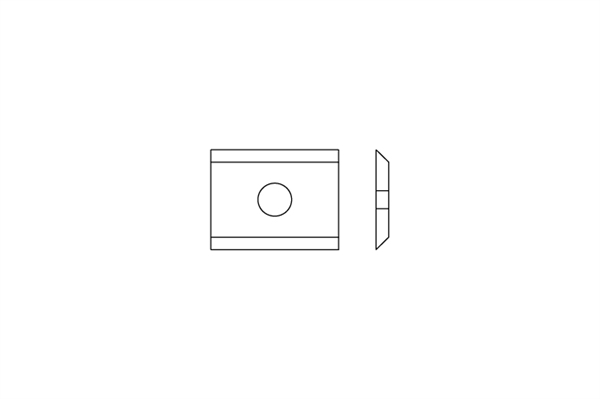

HM-Wechselplatten 2 Schneiden

(PLAQ020-24)

L	l	e	β°	N	Code
80	13	2.2	35°	STANDARD	PLAQ0063
100	13	2.2	35°	STANDARD	PLAQ0241
120	13	2.2	35°	STANDARD	PLAQ0242

(PLAQ011-02)

L	l	e	N
49	15	2.0	STANDARD	PLAQW400
49	15	2.0	STANDARD	PLAQW401
49	15.6	2.0	STANDARD	PLAQW402
49	15.6	2.0	STANDARD	PLAQW403
50	16.6	2.0	STANDARD	PLAQW461
50	16.6	2.0	STANDARD	PLAQW462
50	16.6	2.0	STANDARD	PLAQW463
50	16.6	2.0	STANDARD	PLAQW491
50	16.6	2.0	STANDARD	PLAQW492
50	16.6	2.0	STANDARD	PLAQW493

(PLAQ011-03)

L	l	e	N
15.6	25	2.0	STANDARD	PLAQW306
15.6	25	2.0	STANDARD	PLAQW308
20	35	2.0	STANDARD	PLAQW315
20.7	30	2.0	STANDARD	PLAQW310
50	19.5	2.0	STANDARD	PLAQW618
50	19.5	2.0	STANDARD	PLAQW619

(PLAQ011-04)

L	l	e	N
20	30	2.0	STANDARD	PLAQW415
20	40	2.0	STANDARD	PLAQW421
20.5	35	2.0	STANDARD	PLAQW406
20.5	35	2.0	STANDARD	PLAQW411
20.6	30	2.0	STANDARD	PLAQW405
20.7	30	2.0	STANDARD	PLAQW410
20.7	30	2.0	STANDARD	PLAQW420
20.7	35	2.0	STANDARD	PLAQW416
40	29	2.0	STANDARD	PLAQW272

HM-Wechselplatten für Verleimmesserkopf

(PLAQ035)

L	l	e	N	Messerkopf	Code
50	12	1.5	STANDARD	FRAI0019	PLAQ0117

HM-Wechselplatten für Multi-Verleimmesserkopf

(PLAQ023)

L	l	e	N	Messerkopf	Code
106.3	15	1.5	STANDARD	FRAI0531	PLAQ0453
106.3	15	1.5	STANDARD	FRAI0532	PLAQ0454
120	13	2.2	STANDARD	FRAI120120B	PLAQ1201322B

HM Wende Zähne für Kegel-Radius Hobelköpfe.

(PLAQ036)

L	l	e	N	R	P.O	Code
20	20	2.0	STANDARD	10	FRAI12520201D	PLAQ20202R10D
20	20	2.0	STANDARD	10	FRAI12520201G	PLAQ20202R10G
20	20	2.0	STANDARD	5	FRAI12520201D	PLAQ20202R5D
20	20	2.0	STANDARD	5	FRAI12520201G	PLAQ20202R5G
20	20	2.0	STANDARD	8	FRAI12520201D	PLAQ20202R8D
20	20	2.0	STANDARD	8	FRAI12520201G	PLAQ20202R8G

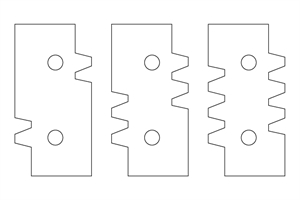

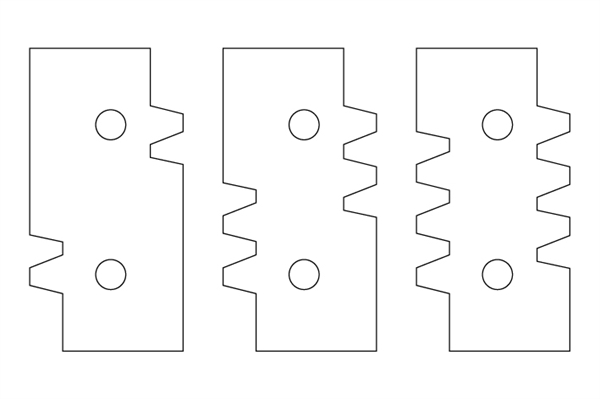

HM Wende Zähne für Nut und Feder Hobelköpfe.

(PLAQ037)

L	l	e	N	P.O	Code
25	25	2.0	STANDARD	FRAI153202B1	PLAQ25252B1
25	25	2.0	STANDARD	FRAI153202B2	PLAQ25252B2
25	25	2.0	STANDARD	FRAI155202A1	PLAQ25252A1
25	25	2.0	STANDARD	FRAI155202A2	PLAQ25252A2
25	55	2.0	STANDARD	FRAI170202E	PLAQ25552E

HM-Wechselplatten 2 Schneiden

(PLAQ020-01)

L	l	e	β°	N	Code
10	12	1.5	35°	STANDARD	PLAQ0104

HM-Wechselplatten für Verleimmesserkopf mit Wendeschneidplatten

(PLAQ025)

L	l	e	Messerkopf	Code
50	22	2.0	FRAI0669	PLAQ0550
50	22	2.0	FRAI0669	PLAQ0552
50	22	2.0	FRAI0669	PLAQ0551

HM-Wechselplatten 4 Schneiden

(PLAQ020-03)

L	l	e	β°	N	Code
19.5	7	1.5	35° - 20°	STANDARD	PLAQ0875
19.5	7.5	1.5	35° - 20°	STANDARD	PLAQ0876
19.5	8	1.5	35° - 20°	STANDARD	PLAQ0877
19.5	9	1.5	35° - 20°	STANDARD	PLAQ0745
19.5	10	1.5	35° - 20°	STANDARD	PLAQ0578
29.5	7	1.5	35° - 20°	STANDARD	PLAQ0762
29.5	7.5	1.5	35° - 20°	STANDARD	PLAQ0837
29.5	8	1.5	35° - 20°	STANDARD	PLAQ0739
29.5	9	1.5	35° - 20°	STANDARD	PLAQ0880
29.5	10	1.5	35° - 20°	STANDARD	PLAQ0740
49.5	8	1.5	35° - 20°	STANDARD	PLAQ0715
49.5	9	1.5	35° - 20°	STANDARD	PLAQ0878
49.5	10	1.5	35° - 20°	STANDARD	PLAQ0879
59.5	12	1.5	35° - 20°	STANDARD	PLAQ0374

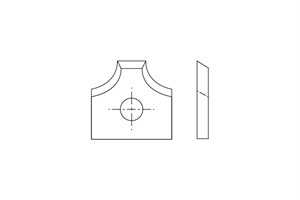

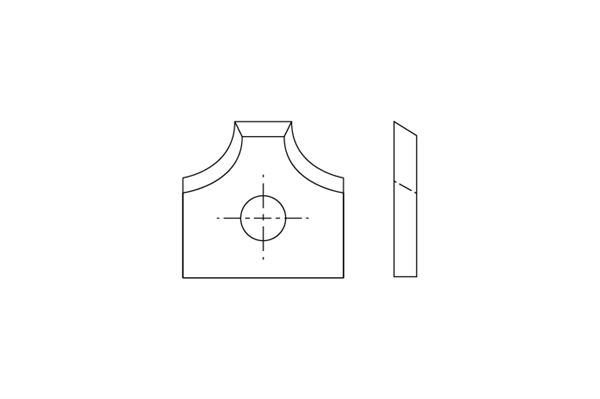

HM-Wechselplatten Doppelradius

(PLAQ020-15)

L	l	e	N	R	Code
12	13	2.0	STANDARD	2	PLAQ1213R2
12	13	2.0	STANDARD	2.5	PLAQ1213R25
12	13	2.0	STANDARD	3	PLAQ1213R3

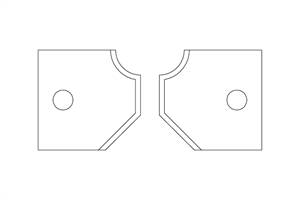

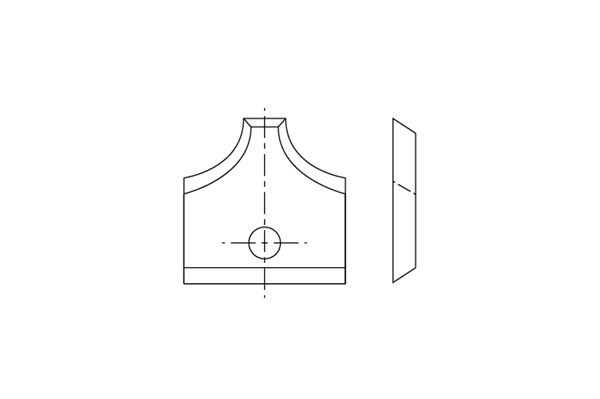

HM-Wechselplatten Doppelradius

(PLAQ020-16)

L	l	e	N	R	Code
16	17.5	2.0	STANDARD	2	PLAQ16175R2
16	17.5	2.0	STANDARD	3	PLAQ16175R3
16	17.5	2.0	STANDARD	4	PLAQ16175R4
16	17.5	2.0	STANDARD	5	PLAQ16175R5

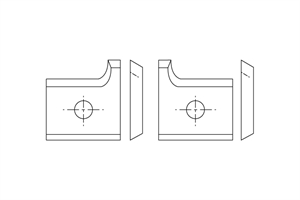

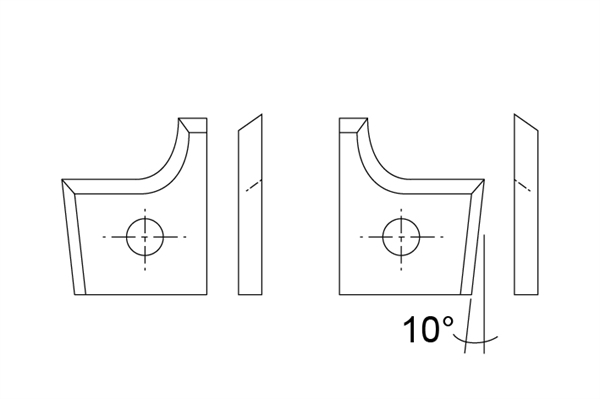

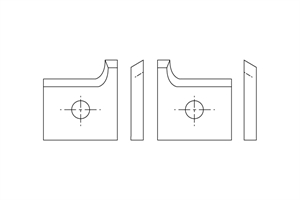

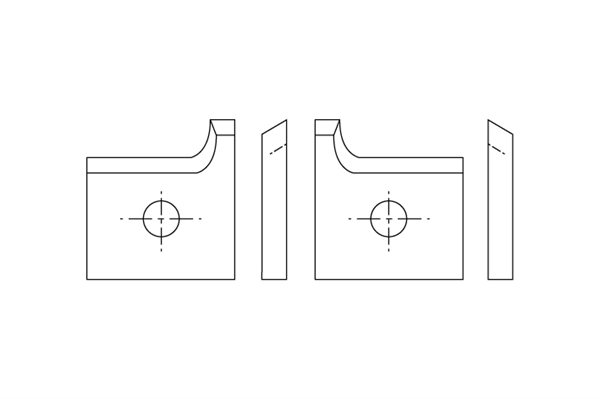

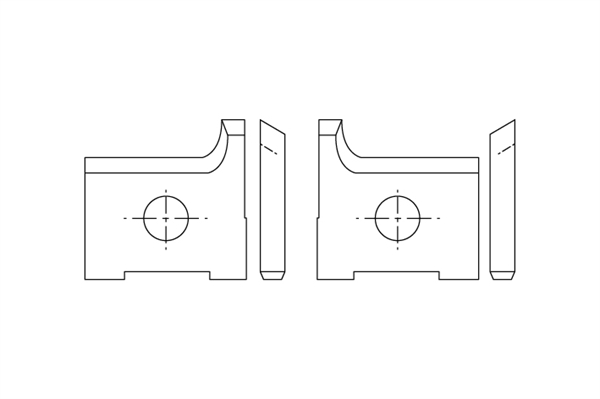

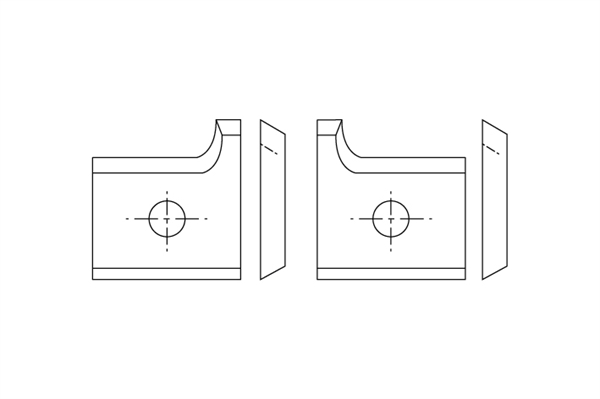

HM-Wechselplatten Kantenanleimmaschine

(PLAQ020-17)

L	l	e	N	R	RH/RL	Code
12	14.5	2.0	STANDARD	2	ROT: DROITE	PLAQ12145R2D
12	14.5	2.0	STANDARD	2	ROT: GAUCHE	PLAQ12145R2G
12	14.5	2.0	STANDARD	2.5	ROT: DROITE	PLAQ12145R25D
12	14.5	2.0	STANDARD	2.5	ROT: GAUCHE	PLAQ12145R25G
12	14.5	2.0	STANDARD	3	ROT: DROITE	PLAQ12145R3D
12	14.5	2.0	STANDARD	3	ROT: GAUCHE	PLAQ12145R3G

HM-Wechselplatten Kantenanleimmaschine

(PLAQ020-18)

L	l	e	N	R	RH/RL	Code
15	14.5	2.0	STANDARD	2	ROT: DROITE	PLAQ15145R2D
15	14.5	2.0	STANDARD	2	ROT: GAUCHE	PLAQ15145R2G
15	14.5	2.0	STANDARD	2.5	ROT: DROITE	PLAQ15145R25D
15	14.5	2.0	STANDARD	2.5	ROT: GAUCHE	PLAQ15145R25G
15	14.5	2.0	STANDARD	3	ROT: DROITE	PLAQ15145R3D
15	14.5	2.0	STANDARD	3	ROT: GAUCHE	PLAQ15145R3G

HM-Wechselplatten Kantenanleimmaschine

(PLAQ020-19)

L	l	e	N	R	RH/RL	Code
19.6	15.2	2.0	STANDARD	2	ROT: DROITE	PLAQ196152R2D
19.6	15.2	2.0	STANDARD	2	ROT: GAUCHE	PLAQ196152R2G
19.6	15.2	2.0	STANDARD	3	ROT: DROITE	PLAQ196152R3D
19.6	15.2	2.0	STANDARD	3	ROT: GAUCHE	PLAQ196152R3G

HM-Wechselplatten Kantenanleimmaschine

(PLAQ020-20)

L	l	e	N	R	RH/RL	Code
12	18	2.0	STANDARD	2	ROT: DROITE	PLAQ1218R2D
12	18	2.0	STANDARD	2	ROT: GAUCHE	PLAQ1218R2G
12	18	2.0	STANDARD	3	ROT: DROITE	PLAQ1218R3D
12	18	2.0	STANDARD	3	ROT: GAUCHE	PLAQ1218R3G

HM-Wechselplatten Kantenanleimmaschine

(PLAQ020-21)

L	l	e	β°	N	R	Code
20	12	2.0	15°	STANDARD	2	PLAQ2012R215
20	12	2.0	6°	STANDARD	2	PLAQ2012R26
20	12	2.0	15°	STANDARD	3	PLAQ2012R315
20	12	2.0	6°	STANDARD	3	PLAQ2012R36
20	12	2.0	6°	STANDARD	4	PLAQ2012R46
20	12	2.0	6°	STANDARD	5	PLAQ2012R56

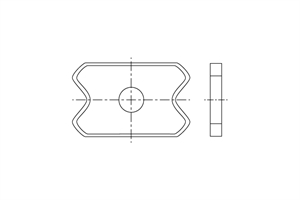

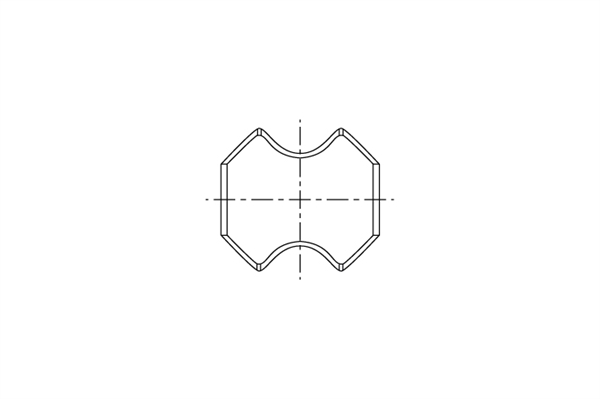

HM-Wechselplatten Kantenanleimmaschine

(PLAQ020-13)

L	l	e	N	R	Code
12.7	12.7	3.2	STANDARD	2	PLAQ127127R2
12.7	12.7	3.2	STANDARD	3	PLAQ127127R3

Holzfachleute

Entdecken Sie hier unser gesamtes Angebot.
