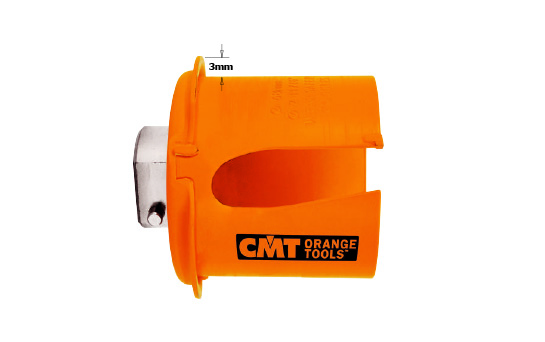

Hole saws - Multi-function

Multi-purpose hole saws

(CMT550-TREPAN)

Tungsten carbide-tipped multi-purpose hole saws are designed for use in a wide variety of materials (such as soft and hardwoods, plywood, plasterboard, solid brick, tiles ...).

TECHNICAL FEATURES :
- Perfect round back plate.
- Fast & easy center drill change.
- Large chip clearance slots.
Long lasting construction grade carbide
Cutting teeth are made of a special formulated construction grade carbide which provides a longer cutting life.
Secured tooth technology
As a result of the latest technology, teeth are secured to prevent any breakage during impact with hard materials.

Materials :
- Soft, hardwoods and plywood.
- Chipboard, MDF, veneered, laminated and table top (pre-drill the laminate/melamine by using left-hand rotation for clean finishing).
- Gypsum, plasterboard, fibercement boards, Eternit®.
- Plastics (PVC, nylon, Trespa®, polyester).
- Tiles, solid bricks and bricks with cavities, aerated concrete blocks, lightweight aggregate blocks and breeze blocks, soft density limes and stone building blocks (max 30 N/mm2 hardness); for hardness &30 N/mm2 use our diamond dry hole saws.
Use the recommended speeds to get optimum lifetime. The speed affects the hole quality. Always pre-drill with the center drill to achieve best performance. The percussion/hammer action mode must be turned off when using these hole saws.

D	l	L	Z	Wood & MDF RPM	PVC & fiberglass RPM	Masonry, brick RPM	Tiles RPM	Code
19	52	63	1	1600	1000	1000	640	CMT550-019
20	52	63	1	1600	1000	1000	640	CMT550-020
22	52	63	1	1460	1000	1000	580	CMT550-022
25	52	63	1	1280	1000	1000	510	CMT550-025
29	52	63	1	1100	940	940	440	CMT550-029
30	52	63	1	1070	910	910	430	CMT550-030
38	52	63	2	840	720	720	340	CMT550-038
40	52	63	2	800	680	680	320	CMT550-040
51	52	63	3	630	540	540	250	CMT550-051
52	52	63	3	620	530	530	250	CMT550-052
54	52	63	3	590	510	510	240	CMT550-054
56	52	63	3	570	490	490	230	CMT550-056
64	52	63	3	500	430	430	200	CMT550-064
65	52	63	3	500	430	430	200	CMT550-065
79	52	63	3	410	350	350	160	CMT550-079
82	52	63	3	390	330	330	160	CMT550-082
83	52	63	3	390	330	330	150	CMT550-083
89	52	63	3	360	310	310	140	CMT550-089
114	52	63	5	280	240	240	110	CMT550-114
152	52	63	5	210	180	180	80	CMT550-152
168	52	63	7	200	150	150	120	CMT550-168
210	52	63	7	200	150	150	120	CMT550-210
225	52	63	9	160	120	120	95	CMT550-225
260	52	63	9	150	110	110	80	CMT550-260
270	52	63	9	140	100	100	70	CMT550-270

Center drills for multi-purpose hole saws

(CMT550-HS-HW-DB)

TECHNICAL FEATURES :
- Chrome coated.
- Hexagonal shank.

d	D	L	S
8	10		10	Center drill for bore enlargement and plug removal	CMT550-DB1
20	30	180	8	Center drill for wood	CMT550-HS1
20	30	180	8	Center drill for masonry	CMT550-HW1
32	270	180	10	Center drill for wood	CMT550-HS2
32	270	180	10	Center drill for masonry	CMT550-HW2
32	270	320	10 XL	Center drill for wood XL	CMT550-HS2XL

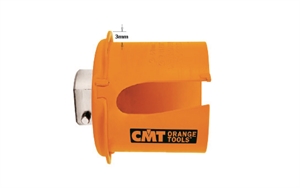

Multi-purpose long hole saws

(CMT553-TREPAN)

Tungsten carbide-tipped multi-purpose hole saws are designed for use in a wide variety of materials (such as soft and hardwoods, plywood, plasterboard, solid brick, tiles ...).

Materials :
- Soft, hardwoods and plywood.
- Chipboard, MDF, veneered, laminated and table top (pre-drill the laminate/melamine by using left-hand rotation for clean finishing).
- Gypsum, plasterboard, fibercement boards, Eternit®.
- Plastics (PVC, nylon, Trespa®, polyester).
- Tiles, solid bricks and bricks with cavities, aerated concrete blocks, lightweight aggregate blocks and breeze blocks, soft density limes and stone building blocks (max 30 N/mm2 hardness); for hardness & 30 N/mm2 use our diamond dry hole saws.
Use the recommended speeds to get optimum lifetime. The speed affects the hole quality. Always pre-drill with the center drill to achieve best performance. The percussion/hammer action mode must be turned off when using these hole saws.

D	l	L	Z	Wood & MDF RPM	PVC & fiberglass RPM	Masonry, brick RPM	Tiles RPM	Code
32	152	168	1	800	600	600	400	CMT553-032
45	152	168	2	600	450	450	350	CMT553-045
51	152	168	3	600	450	450	350	CMT553-051
60	152	168	3	500	350	350	300	CMT553-060
65	152	168	3	500	350	350	300	CMT553-065
68	152	168	3	500	350	350	300	CMT553-068
70	152	168	3	500	350	350	300	CMT553-070
76	152	168	3	500	350	350	300	CMT553-076
80	152	168	3	300	250	250	200	CMT553-080
83	152	168	3	300	250	250	200	CMT553-083
86	152	168	3	300	250	250	200	CMT553-086
92	152	168	3	300	250	250	200	CMT553-092
102	152	168	5	300	250	250	200	CMT553-102
105	152	168	5	300	250	250	200	CMT553-105
111	152	168	5	200	150	150	120	CMT553-111
114	152	168	5	200	150	150	120	CMT553-114
121	152	168	5	200	150	150	120	CMT553-121
127	152	168	5	200	150	150	120	CMT553-127
130	152	168	5	200	150	150	120	CMT553-130
133	152	168	5	200	150	150	120	CMT553-133
140	152	168	5	200	150	150	120	CMT553-140
152	152	168	5	200	150	150	120	CMT553-152
160	152	168	7	200	150	150	120	CMT553-160
177	152	168	6	200	150	150	120	CMT553-177
190	152	168	7	200	150	150	120	CMT553-190
210	152	168	7	200	150	150	120	CMT553-210
