Universal boring template

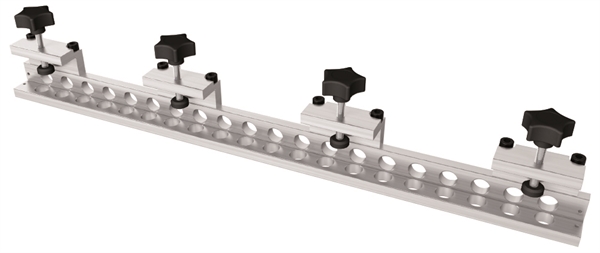

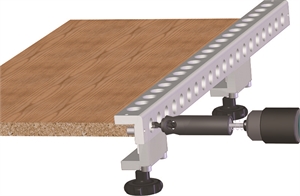

Universal boring jig

Universal boring jigUniversal boring jigUniversal boring jigUniversal boring jigUniversal boring jigUniversal boring jig
(CMT656-1)

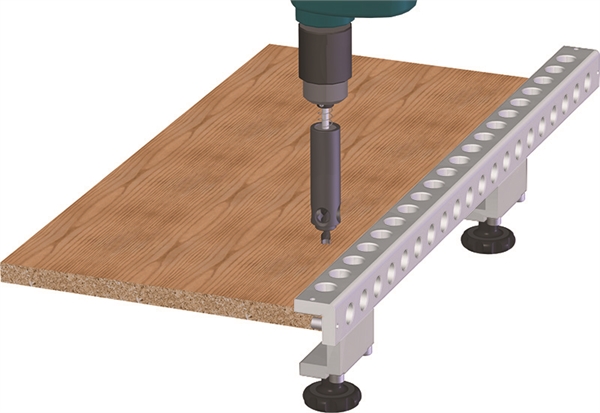

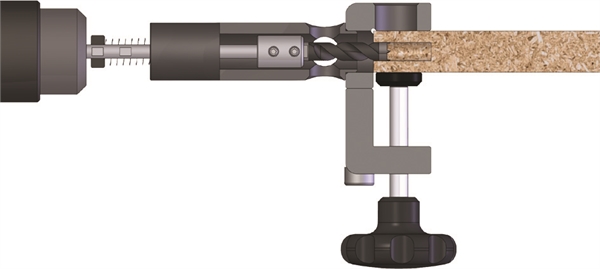

This universal boring jig has been designed for precise and productive manual dowelling of furniture elements and guarantees high precision work and productivity. The holes have been made with a distance of 32mm between one another, in compliance with the European regulations for doweling machine production. Also, the dowel jig fits CMT Ø8mm shank HW drill bits, clamped into a special boring adaptor.

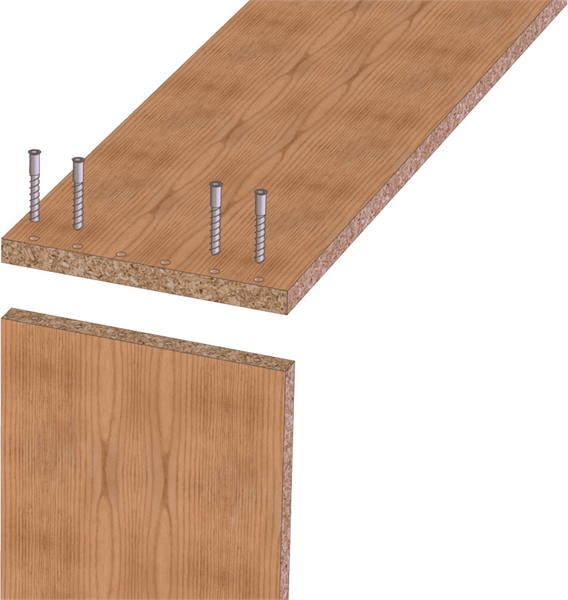

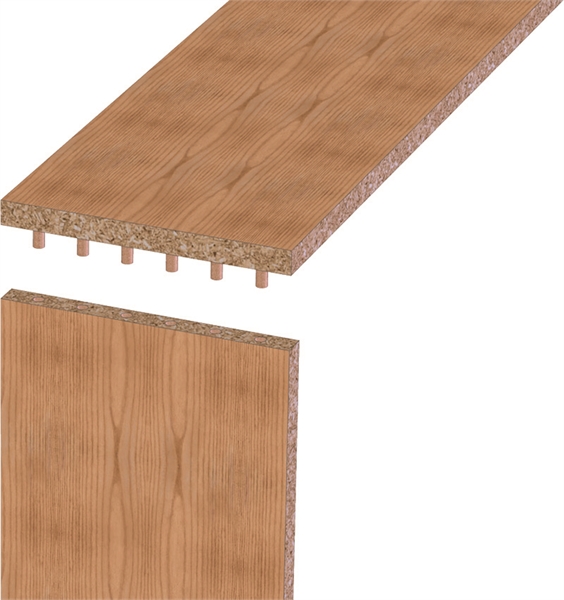

- For edge dowelling and jointing.
- Precise holes.
- Detachable end stops.
- Ergonomic manual tighteners.
- Precise and flat duralumin profile.

TECHNICAL FEATURES :

Max board width in one tightening : 656mm.
Max. board width : No limits.
For dowels : Ø8mm.
For through holes : Ø7mm.
Hole distance : 32mm.
Number of Ø18mm holes : 2x20mm
Board thickness : 16~40mm
Facet (elements lap) : 0,8mm.

Code
Universal boring jig (656mm in one tightening) CMT656

Related products

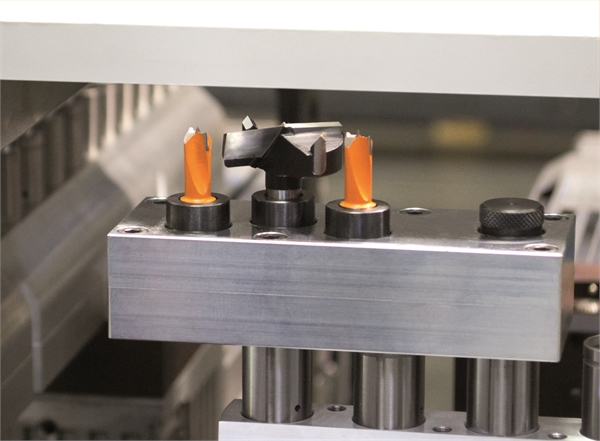

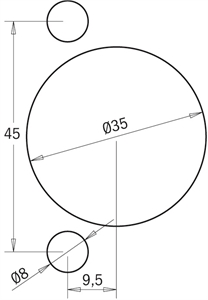

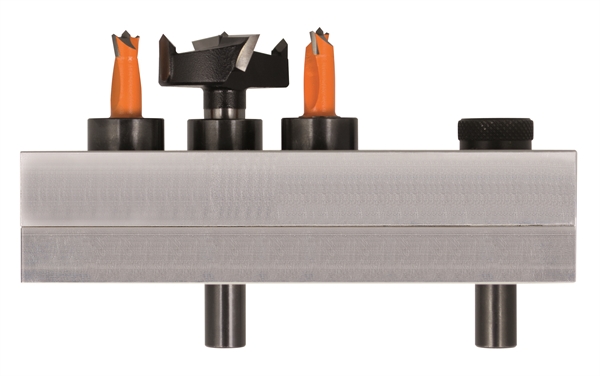

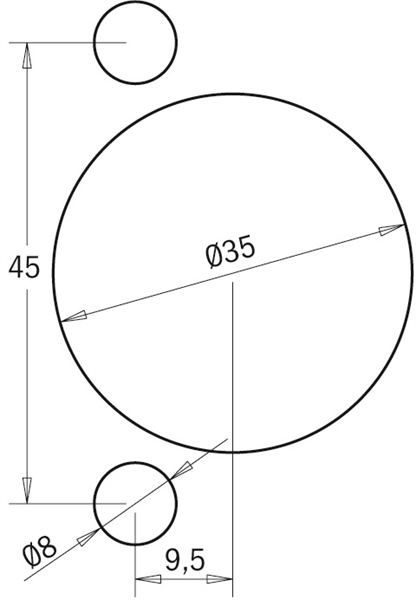

CMT334 - Spare parts for BLUM, SALICE, HÄFELE and HETTICH hinge boring head

CMT334 - Spare parts for BLUM, SALICE, HÄFELE and HETTICH hinge boring headCMT334 - Spare parts for BLUM, SALICE, HÄFELE and HETTICH hinge boring headCMT334 - Spare parts for BLUM, SALICE, HÄFELE and HETTICH hinge boring head
(CMT334.RIC)

D l S Rotation Code
35 38.5 10x20 DROITE Hinge boring bit CMT39335011
8 38.5 10X18 GAUCHE Blind hole drill bit CMT39308012

Related products

4-piece bench block set

4-piece bench block set
(CMTBBS-001)

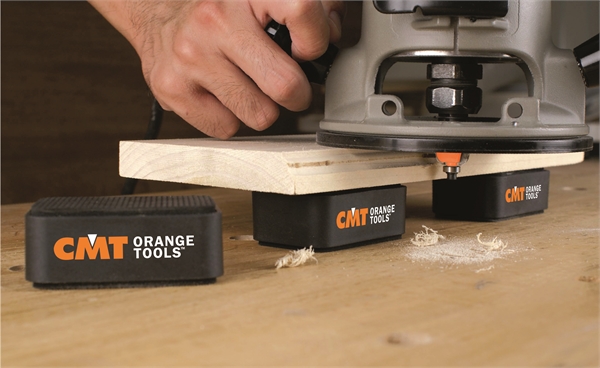

These blocks are great for holding your workpiece without any clamps. Their anti-slip surface grip both your bench top and the underside of your workpiece. Raise your work above the bench and benefit from plenty of clearance for your router bits, cutters, etc.

Code
DIM = 75x50x25(h) CMTBBS-001

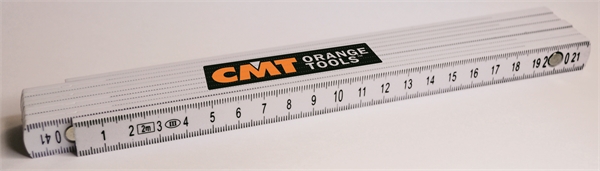

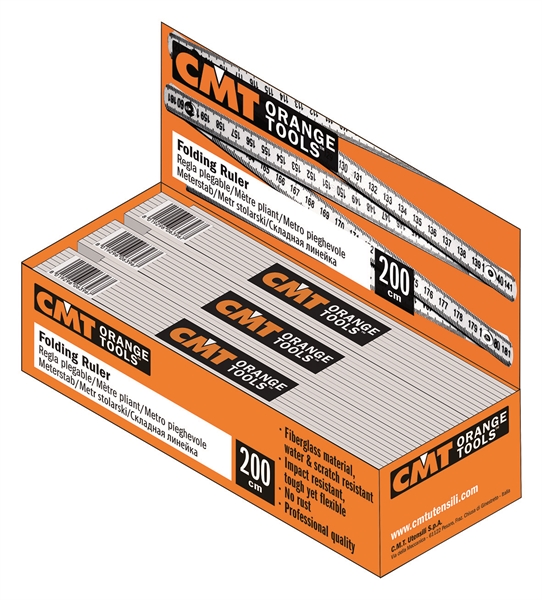

Folding ruler
